Milk Data Processor Unit
PRIME-DP44 — the rural milk-collection terminal that captures, computes and pays in one pass.
- Captures FAT / SNF from any milk analyser
- Instant rate calc & member payment slip
- 6-digit LED + 4-line jumbo LCD
- Rugged CNC metal cabinet for rural sites
Built and calibrated in Jaipur — a rugged, low-cost alternative to PC-based milk collection.
One pass: weigh, test, pay.
At the collection counter the DPU reads the weight, pulls FAT and SNF straight from the milk analyser over RS232, looks up the rate chart and prints the member's slip — instantly, with no PC. Rate charts (FAT/SNF and FAT/CLR) load from a pen drive or get typed in on the keypad, so every society runs its own pricing.
A collection in five steps.
Place & weigh
Set the can on the platform; the 6-digit LED locks a stable weight in seconds.
Pick the member
Press CODE and enter the party code — up to 999 members, each with a name.
CODE / F1Read the analyser
FAT & SNF arrive live from the milk analyser over RS232 — no re-typing.
Rate & total
The LCD shows weight, FAT, SNF, rate and total amount from the society's chart.
Save & print
Press Enter to save and print the member slip on the spot; Esc cancels with no bill.
ENTERWhy societies choose it.
Reads the analyser
Captures FAT / SNF over RS232 with CLR-based collection — works with any make of milk analyser.
Instant payment
Processes the data on the spot and prints a member transaction slip — no waiting, no disputes.
Rural-rugged
CNC-designed strong metal cabinet and a high-life-cycle Cherry keypad, built to work in rural conditions.
Three ways to compute the rate.
Every society prices milk differently, so the DP44 carries three rate engines. Set FAT and SNF rates with a bonus or deduction, or load a full rate chart from a pen drive — switch modes from the menu.
FAT–SNF rate
A direct formula on FAT and SNF, with separate bonus and deduction rates built in.
SNF rate chart
A full FAT × SNF lookup table — typed on the keypad or downloaded from a pen drive.
CLR rate chart
FAT × CLR pricing with TSF / CLR range limits for cow and mixed milk.
Everything in the box, every job one key.
- Rugged to work in rural conditions
- Very user-friendly operation, 5×5 Cherry keypad
- 6-digit multi-colour LED display for weight
- 4-line big LCD display for milk parameters
- RS232 port for milk analyser & EWS
- USB pen-drive & USB printer ports
- Capture FAT / SNF from milk analyser; CLR-based collection
- Rate chart upload from pen drive or keypad / keyboard entry
- Interoperable with any make of analyser & printer
- Slip printout for every member milk transaction
- Real-time monitoring, instant analysis & advanced reports
- Cost-effective vs a PC-based milk-collection system
| CODE | F1 | Milk collection by member code |
| Alt 2 | F2 | Add an extra or pending entry |
| Alt 3 | F3 | View / print an entry by receipt no |
| Alt 4 | F4 | View / print an entry by member code |
| Report | F9 | Print collection & programming reports |
| Menu | F8 | Programming mode (password protected) |
Runs from the on-board 5×5 Cherry keypad or a plug-in USB keyboard — whichever the counter prefers.
Specifications at a glance.
| Model | PRIME-DP44 |
| Weight display | 6-digit multi-colour LED |
| Parameter display | 4-line jumbo LCD |
| Keypad | 5×5 Cherry |
| Analyser link | RS232 (FAT / SNF / CLR) |
| Ports | USB pen-drive · USB printer · RS232 (EWS) |
| Party codes | Up to 999 members with names |
| Rate modes | FAT–SNF rate · SNF chart · CLR chart |
| Printer | Internal thermal or external USB · 40-column slip |
| Power | DC adapter · 2 A protected circuit |
| Cabinet | CNC-designed metal |
Everything plugs in at the back.
The complete counter kit.
LED weight readout, jumbo LCD for parameters, Cherry keypad.

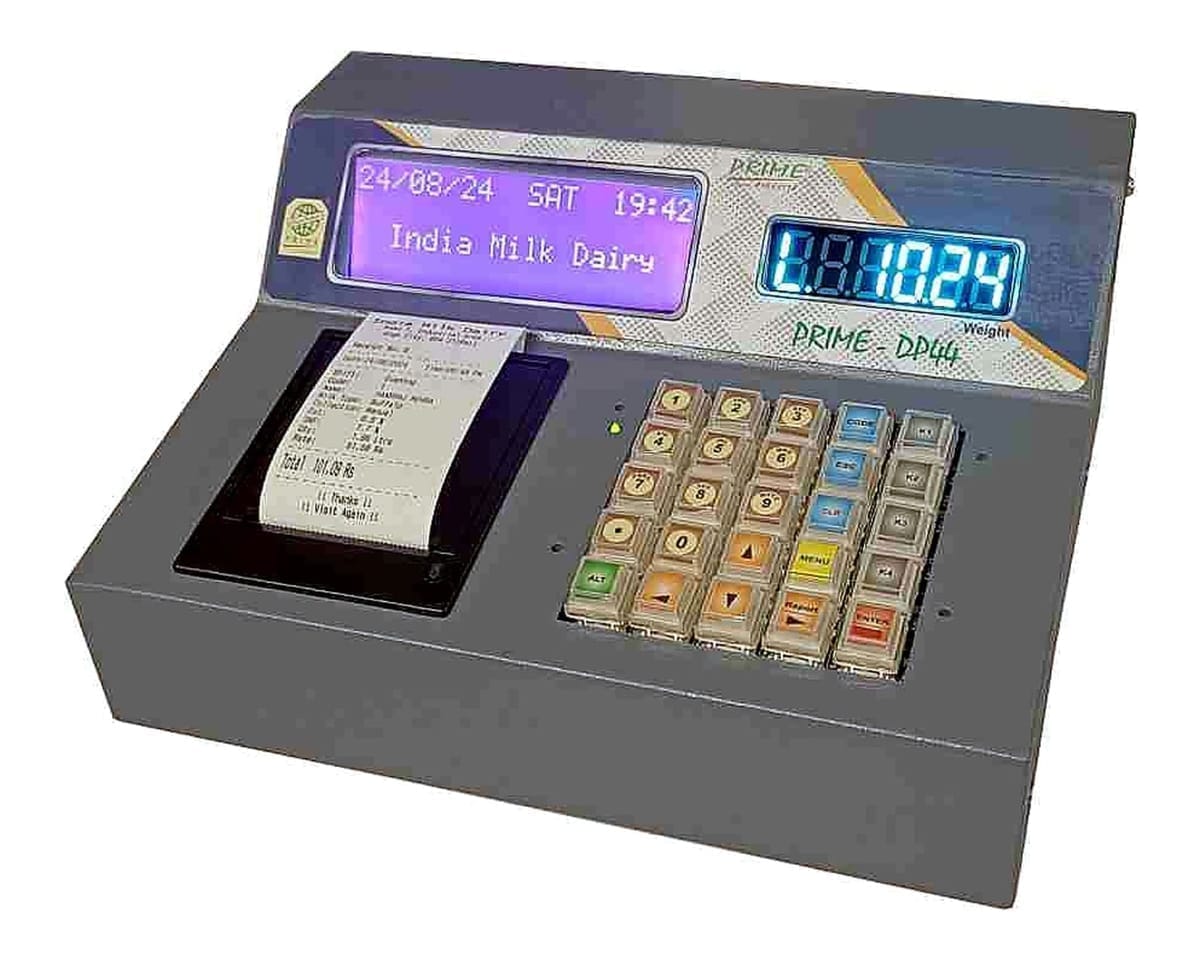

Terminal, slip printer and keypad together in the CNC metal cabinet.

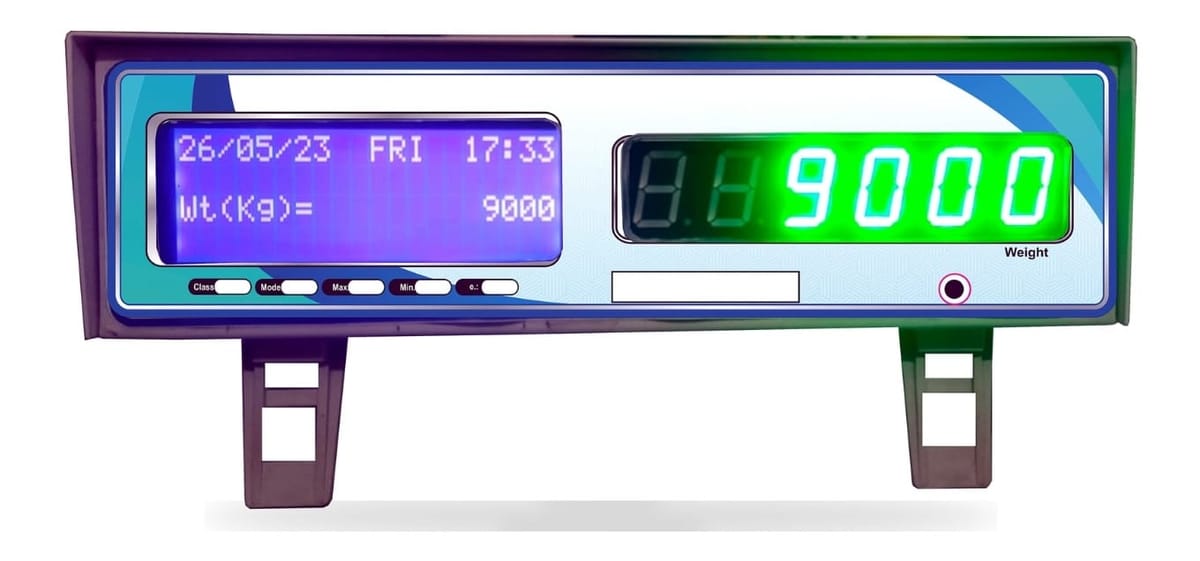

MUIT — the milk testing terminal.
The Milk Universal Interface Terminal pairs the weighing scale with the milk analyser — date, time and weight on the operator LCD, a bright LED weight readout for the member, and rear ports for the analyser, printer and PC.
Operator LCD plus member-facing LED weight display.

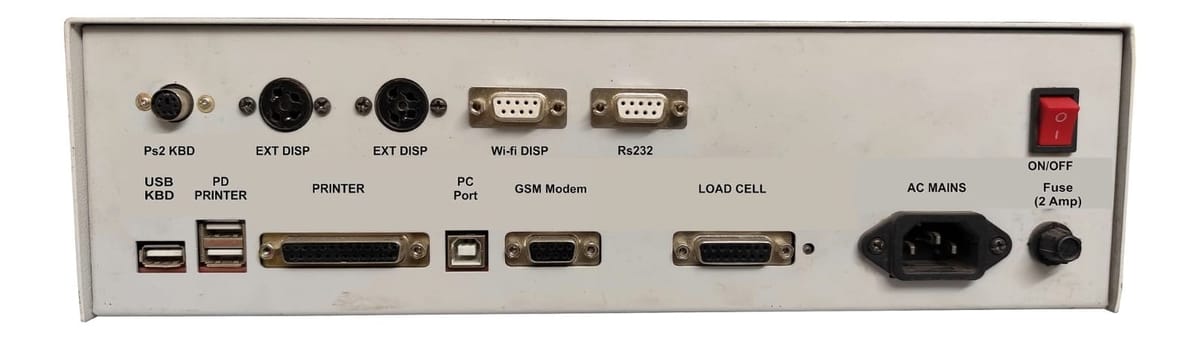

Ports for milk analyser, printer and PC on the back panel.
The full unit at a glance — hover to flip from display side to port side.
Build the full counter.
Set up your milk-collection counter.
Tell us your analyser make and rate chart, and we quote the DP44, the analyser interface, the slip printer and member displays in one document.
